About L&R

Engineering You Can Rely On

Based in Gloucester just off the M5, L&R Precision Engineering has been producing high-quality machined components since 2003. We specialise in toolmaking, CNC turning and CNC milling across a wide range of materials.

Our highly skilled machinists carry considerable technical knowledge built over many years of hands-on experience. State-of-the-art plant — including HAAS and XYZ machinery — allows us to hold tight tolerances repeatedly, even on the most complex components.

We often identify improvements to customer designs that reduce production cost without compromising function. Whether the job is urgent or complex, the L&R team is always on hand to help.

ISO 9001:2015

GTMA Member

Rapid Response

Fast quoting and short lead times — we know that downtime costs money.

Technical Expertise

Our machinists provide practical advice that regularly reduces customer costs.

Tight Tolerances, Repeatedly

Volume turning to 10 microns accuracy, held consistently across full production runs.

All Material Types

From Inconel to brass, titanium to plastics — we machine whatever the spec demands.

Competitive Pricing

Quality and value are not mutually exclusive. We prove that on every order.

Capability

What We Do

Using CAD/CAM software — OneCNC and Fusion 360 — we design and machine complex components accurately and efficiently, from one-off prototype to full production volume.

Milling

3 to 5-axis CNC milling of complex prismatic components across our HAAS VF4 SS (with TRT210 trunnion for full 5-axis work), HAAS VF2 SS YT, two HAAS Super Mini Mills, DMG EcoMill 600V and XYZ 750 LR. From complex 5-axis geometries machined in a single setup to large, heavy workpieces — one-offs, small batches and full production runs.

5-Axis · OneCNC · Fusion 360

Turning

CNC turning with live tooling across our HAAS ST-20Y, XYZ Proturn and XYZ CT 65. The ST-20Y's Y-axis capability allows milling and turning operations to be completed in a single setup. We work across a wide range of materials and tolerances, from prototype quantities through to full production volumes.

Live Tooling · Y-Axis · All Materials

Sliding Head Lathes

Sliding head (Swiss-type) turning for small, complex precision components produced in volume directly from bar. The guide bush supports the material right at the cutting point, holding exceptional accuracy on long, slender parts — ideal for high-volume runs of intricate turned components with minimal secondary operations.

Swiss-Type · Bar-Fed · High Volume

EDM Machining

EDM machining across our Sodick VL600Q and VL400Q wire-cut machines and AD35L and AG60L die-sink machines. Linear motor drives deliver vibration-free, backlash-free cutting, with the wire machines producing intricate profiles and the sinkers complex 3D cavities to fine surface finishes. We work across hardened tool steels, carbide and exotic alloys, from prototype quantities through to full production volumes.

Wire EDM · Die Sink EDM · Sodick

3D Printing & Prototyping

In-house additive manufacturing on our 2× Bambu Lab X1 Carbon and Qidi X-Max 3 printers. Ideal for rapid prototypes, fit-and-form checks, jigs and fixtures — we can turn a CAD model into a physical part fast, often the same day, to validate a design before committing to machined production.

Bambu Lab X1C · Qidi X-Max 3

Industries Served

We Produce For a Variety of Sectors

L&R components are found in demanding environments where failure is not an option and tolerances are uncompromising.

Sector 01

Aerospace

Precision components for aerospace structures and systems, machined to tight tolerances and material specifications the sector demands.

Sector 02

Oil & Gas

Downhole tools, valve bodies and subsea components machined from challenging materials including Inconel and duplex stainless steels.

Sector 03

Medical

High-precision surgical instruments and device components where surface finish and dimensional accuracy are critical to patient safety.

Our Plant

CNC Equipment

Modern, well-maintained machinery — regularly invested in to maintain the capabilities our customers rely on.

Milling

Machine	Type	Key Specification
HAAS VF4 SS	5-Axis	High-speed VMC fitted with a TRT210 trunnion rotary table — full 5-axis machining of complex geometries in a single setup
HAAS VF2 SS YT	CNC Milling	High-speed VMC with extended Y-axis travel and through-spindle coolant — excellent for deep-cavity and multi-feature components
HAAS Super Mini Mill (×2)	CNC Milling	Compact high-speed vertical machining centres with 40-taper spindle — suited to small, precise components and fast turnaround work
DMG EcoMill 600V	CNC Milling	Rigid vertical machining centre with 600mm X-travel — high accuracy and repeatability for production milling
XYZ 750 LR	CNC Milling	Large-bed CNC bed mill with 750mm X-travel — handles large, heavy workpieces with precision

Turning

Machine	Type	Key Specification
HAAS ST-20Y	CNC Turning	Y-axis live tooling turning centre — combines turning and milling in a single setup, reducing handling and improving accuracy
HAAS ST-10Y	CNC Turning	Compact Y-axis live tooling lathe — ideal for smaller diameter turned components requiring milled features
XYZ SLX 355	CNC Turning	High-accuracy CNC turning centre with large swing capacity — suited to medium and large diameter turned components
XYZ CT65	CNC Turning	Versatile CNC lathe for high-precision bar work across a wide range of materials and batch sizes

Sliding Head Lathes

Machine	Type	Key Specification
Citizen Cincom L20	Sliding Head	Multi-axis Swiss-type lathe with live tooling, up to Ø20mm bar — complex small components turned complete in one cycle
Citizen Cincom L32	Sliding Head	Larger-capacity sliding head lathe, up to Ø32mm bar — high-precision turning of more substantial bar-fed components
Citizen Cincom K16	Sliding Head	High-speed precision sliding head lathe, up to Ø16mm bar — ideal for small, intricate, high-volume turned parts
Citizen Cincom A20 (×2)	Sliding Head	Efficient Swiss-type lathes, up to Ø20mm bar — cost-effective volume production of accurate precision turned components

EDM Machining

Machine	Type	Key Specification
AG60L	Die Sink EDM	CNC die-sink EDM with large work tank — suited to complex cavity and punch work in hardened materials
AD35L	Die Sink EDM	Compact CNC die-sink EDM — precise spark erosion for intricate features and tight-tolerance cavities
VL600Q	Wire EDM	Large-capacity CNC wire EDM with 600mm X-travel — cuts complex profiles in hardened steel, carbide and exotic alloys
VL400Q	Wire EDM	CNC wire EDM with 400mm X-travel — high accuracy profile cutting for tooling, punches and precision components

3D Printing

Machine	Type	Key Specification
Bambu Lab X1 Carbon (×2)	FDM 3D Print	High-speed CoreXY FDM printers with AMS multi-material support — fast, accurate prototypes in a wide range of filaments
Qidi X-Max 3	FDM 3D Print	Large-format enclosed FDM printer — prints high-temperature engineering materials such as ABS, PC, nylon and carbon-fibre composites

Development & Prototyping

From Concept to Component

Using our 3D CAD/CAM expertise we model and exactly reproduce parts that are no longer in production, as well as develop entirely new products from concept through to manufacture.

We work closely with customers throughout the design process — often identifying ways to simplify manufacture, reduce cost or improve performance before a single chip is cut.

Accepted CAD Formats

SolidWorks — .sldprt

STEP — .stp / .step

IGES — .igs / .iges

Parasolids — .x_t / .x_b / .xmt_txt

Other formats — just ask

In-house software: OneCNC · Fusion 360

No drawing? No problem. Bring us a sample, a sketch, or just describe what you need. Our engineers will work with you to develop a manufacturable design.

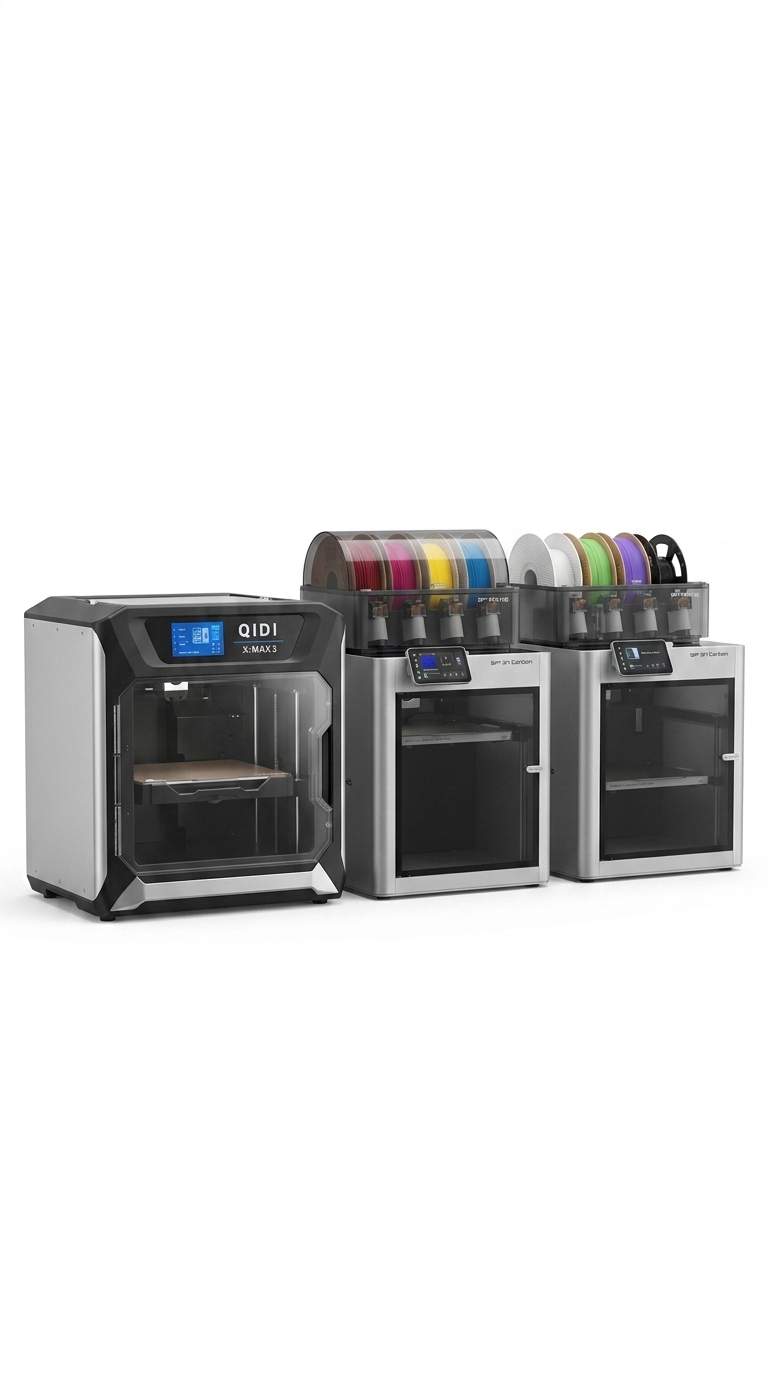

L&R Precision Engineering 3D printer fleet — QIDI X-Max 3 and two Bambu Lab X1 Carbon with AMS

Prototyping

Prototype Before
You Commit to Metal

Before a single chip is cut, we use in-house 3D printing to bring a design into the physical world. A CAD model can become a part you can hold in a matter of hours — letting us and our customers check fit, form and function early, when changes are quick and inexpensive.

Our Bambu Lab X1 Carbon printers — fitted with AMS multi-material systems — and our large-format QIDI X-Max 3 produce accurate prototypes across a wide range of engineering plastics. Printed parts are ideal for design validation, ergonomic and assembly checks, jigs and fixtures, and visual models — catching issues long before they reach the machine shop.

It's a faster, lower-cost route to a proven design, and it means the parts we machine are right first time.

Bambu Lab X1 Carbon ×2 QIDI X-Max 3

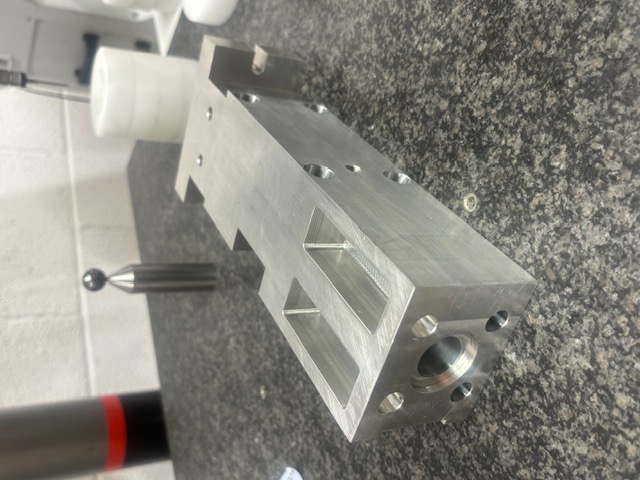

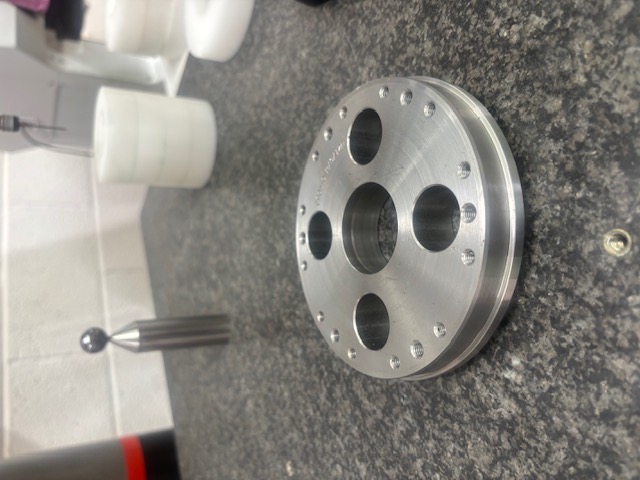

Our Work

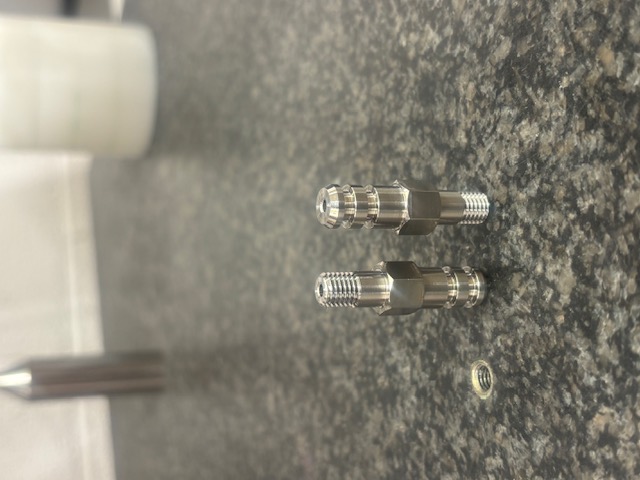

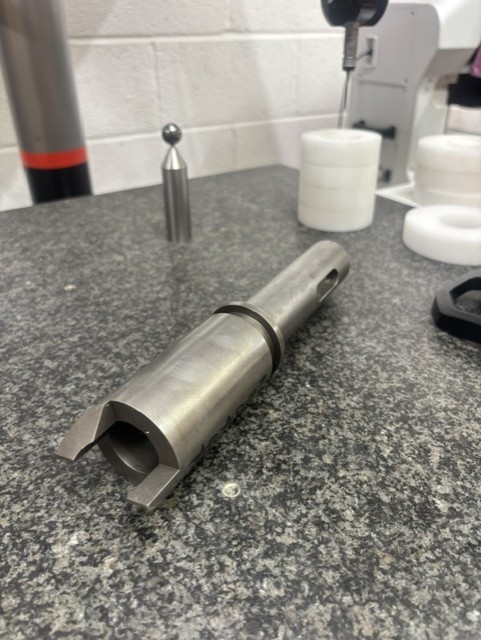

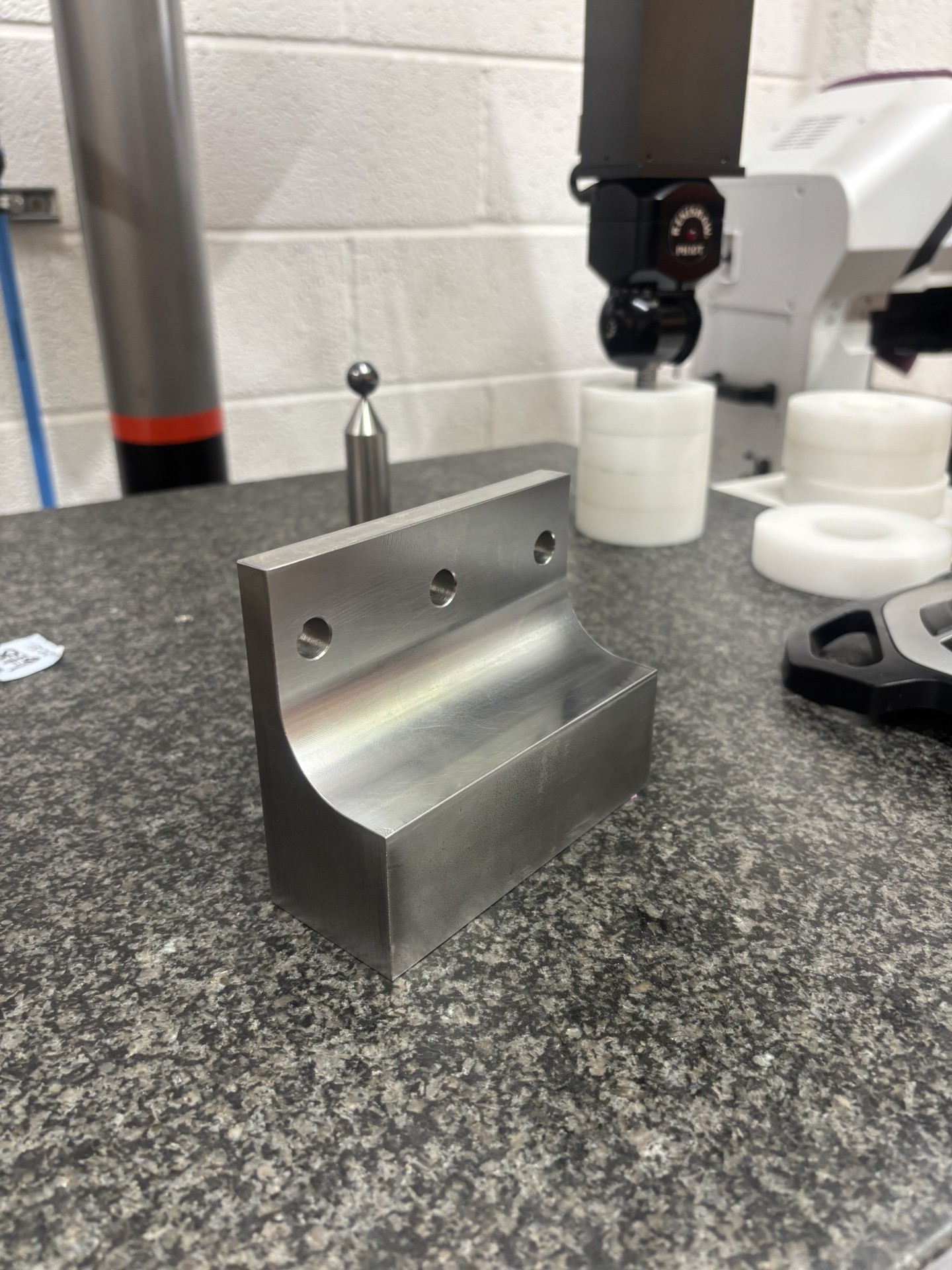

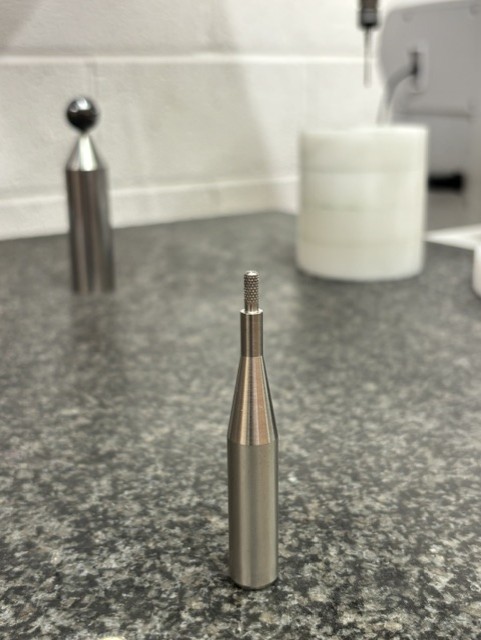

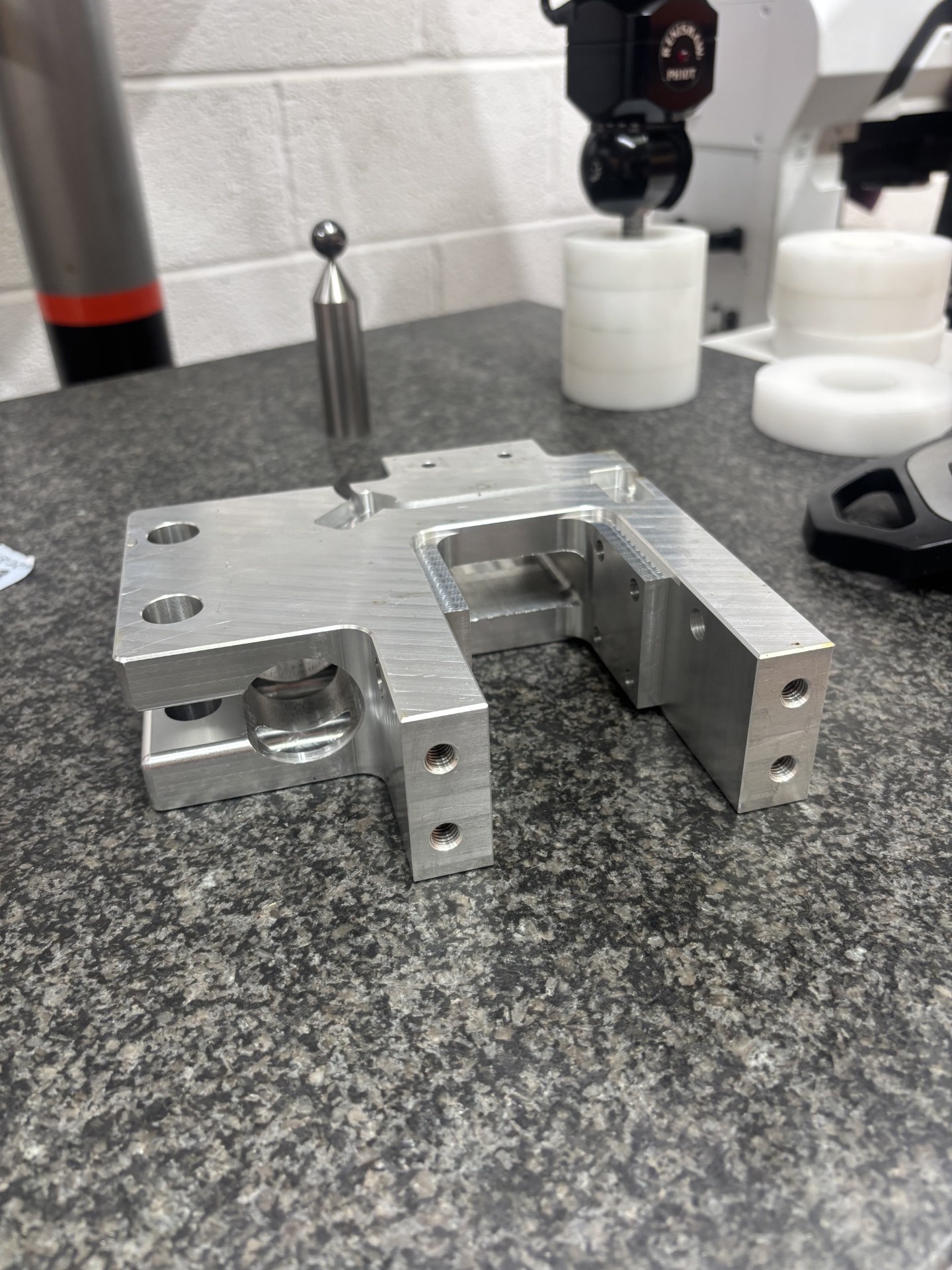

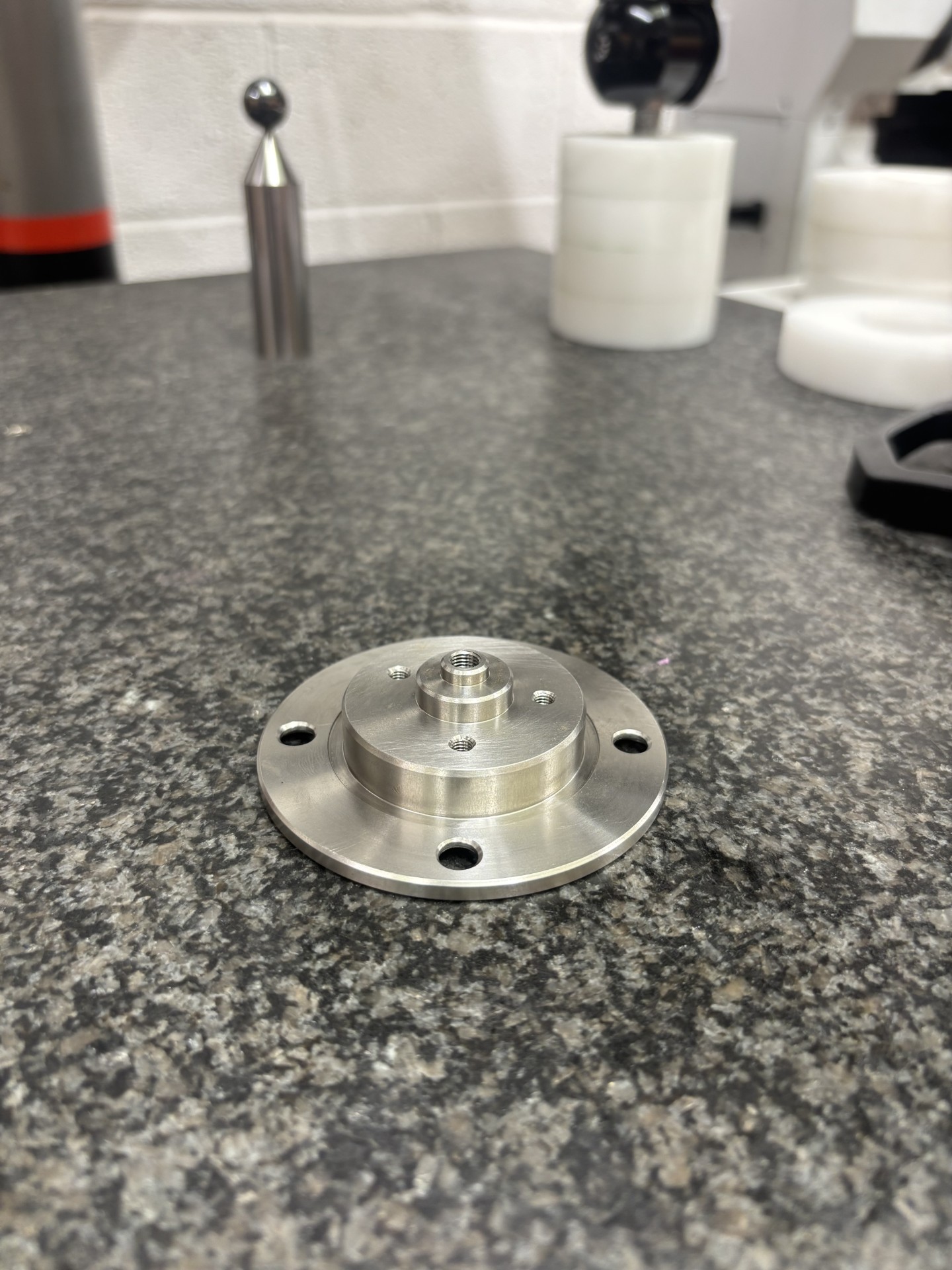

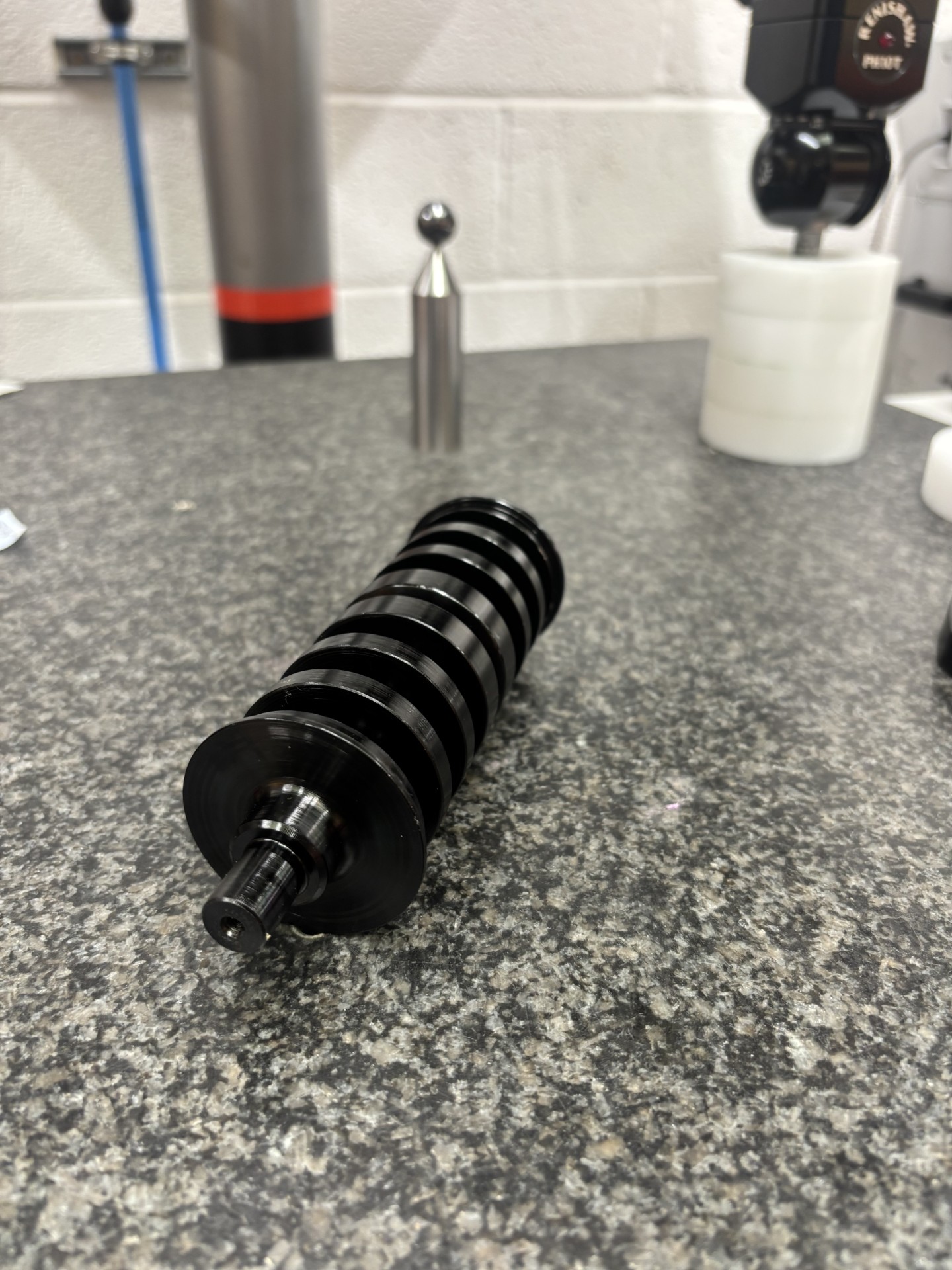

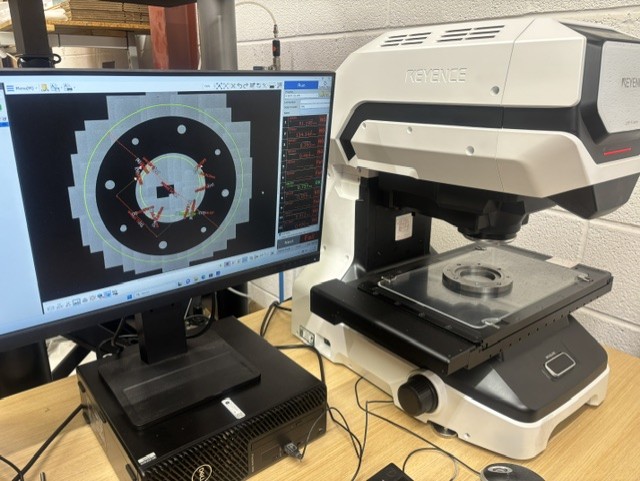

Machining Examples

A selection of components we've manufactured across milling, turning and EDM. Examples of the precision and finish we deliver across a range of materials and sectors.
